Curved PowerRack™ Features

• Increases vent clearance (54″ radius).
• Wide load-bearing surfaces.
• Replaceable parts: every part is replaceable using ordinary hand tools.
• Freedom from corrosion: aluminum rack and housing, zinc pinion gear, tough nylatron bearings.
• Easy alignment: rack works even when it’s not perfectly square with the vent.
• Economically priced.

Curved PowerRack™ Models

36″	Length 1	3/8″	Shaft	Part #	M-2836
36″	Length 1	5/8″	Shaft	Part #	M-2936
42″	Length 1	3/8″	Shaft	Part #	M-2842
42″	Length 1	5/8″	Shaft	Part #	M-2942
48″	Length 1	3/8″	Shaft	Part #	M-2848
48″	Length 1	5/8″	Shaft	Part #	M-2948
53″	Length 1	3/8″	Shaft	Part #	M-2853
53″	Length 1	5/8″	Shaft	Part #	M-2953
66″	Length 1	3/8″	Shaft	Part #	M-2866
66″	Length 1	5/8″	Shaft	Part #	M-2966

Note: On all models there is 6″ of rack movement per revolution of drive shaft.

Shipping Weight:	2.40 lbs.	for	36″ Length
	2.50 lbs.	for	42″ Length
	2.55 lbs.	for	48″ Length
	2.60 lbs.	for	53″ Length
	2.95 lbs.	for	66″ Length

Universal Shaft Hanger
(U-Bolts not included)

The Wadsworth shaft hanger is made of 12 gauge rigid galvanized steel for reliability. It has a Nylatron bearing surface for longer life. Easy mounting pre-punched holes and slots for 5/16″ and 3/8″ diameter U-bolts. Shaft hanger holes and slots will fit 1 3/8″ pipe to 3″ pipe, as well as square tubing, angle, channel and various other greenhouse members.

Part #S-2806
Shaft hanger for 1 3/8″ shaft Wt. 11/4 lbs.

Part #S-2808
Shaft hanger for 1 5/8″ shaft Wt. 11/4 lbs.

Can You See the Difference?

Succesful growers can. It’s the unrivaled quality built into every PowerRack rack and pinion. At Wadsworth Control Systems we know that nothing in your greenhouse takes more abuse than a rack and pinion on a vent. That’s why Wadsworth built a solid, reliable rack and pinion you can count on.

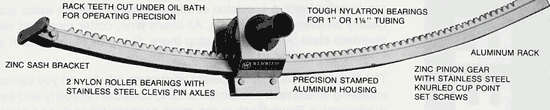

While some rack arms are dry cut, the teeth on Wadsworth’s PowerRack arms are cut under an oil bath to minimize sharp edges and assure smooth operation. The holes in the pinion housing are punched with a precision stamping tool to maintain exact spacing. We don’t compromise quality on even the littlest pin. All clevis pins, cotter pins, and set screws are made of quality stainless steel. And we don’t stop there. Every PowerRack arm and housing is manufactured from aluminum for freedom from corrosion.

The PowerRack is built to operate your vents reliably, so you can concentrate on growing. When choosing which rack and pinion to use, consider reliability and savings on maintenance costs. Wadsworth’s PowerRack is the most economical rack and pinion on the market today. Look closer at the PowerRack and you’ll see the difference!

Straight PowerRack™ Models

Note: On all models there is 6″ of rack movement per revolution of drive shaft.

PowerRack™ Features

• Wide load-bearing surfaces.
• Replaceable parts: every part is replaceable using ordinary hand tools.
• Freedom from corrosion: aluminum rack and housing, zinc pinion gear, tough nylatron bearings.
• Easy alignment rack works, even when it’s not perfectly square with the vent.
• Economically priced.

Check out our Vent Controllers.
