Siebring Hot Direct & Siebring Cold Direct
Drive Pressure Washers
Water Pressure Cleaners
Siebring Hot High Pressure Washers

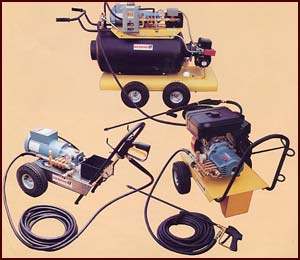

USGR offers a complete line of hot and cold high pressure washers for every application. All washers have a Dema adjustable soap injector. Our HOT high pressure washers give you the power to strip away dirt, oil, grease and grime. Hot washers can be fuel oil or gas heated with electric motors or gasoline engines to power the pump. COLD high pressure washers are available with gasoline engines or electric motors – choose the model to fit your needs.
HOT WASHER FEATURES
- Simple design-less maintenance
- Lower Initial Cost
- Low profile, better stability
- Dema adjustable soap injector
- Oil filled pressure gauge
- 10″ balloon tires
- 50′ wire braid hose
- Insulated trigger type lance
- Beckett burner
- Hot/Cold burner switch
- Water flow switch
- Quick adjust temperature control
- Quick coupled hose
COLD WASHER FEATURES
- Simple Design – Less Maintenance
- Low Profile, Better Stability
- Oil Filled Pressure Gauge
- Dema Adjustable Soap Injector
- 10″ Balloon Tires
- 50′ Wire Braid Hose
- Trigger Type Gun
- Quick Couple Hose
From 3 G.P.M. 1000 P.S.I. to 4 G.P.M. 2000 P.S.I.
When you discover how easy and fast it is to clean with a hot high pressure stream of water you’ll never go back to conventional methods. Siebring portable, hot high pressure washers give you the cleaning power to strip away many forms of dirt, oil, grease and grime. A valuable machine to have around.
Hot Water Washer with Waste oil Burner – Available
| Hot Models | HDD1003 | HDD1204 | HDD2004 |
| Pressure (maximum) |
|
1200 P.S.I. (84 kg/cm2) | 2000 P.S.I. (140 kg/cm2) |
| Volume | 3 GPM (11.8 1/min) | 4 GPM (15.2 1/min) | 4 GPM (15.2 1/min) |
| Pump | Hot Direct Drive | ||
| Motor | 2 H.P. | 3 H.P. | 5 H.P. |
| AMPS | 24 | 13.6 | 26 |
| Drive (single phase standard) | 110 V. | 220 V. | 220 V. |
| Length | 50″ (127 cm) | 50″ (127 cm) | 50″ (127 cm) |
| Width | 30″ (76 cm) | 30″ (76 cm) | 30″ (76 cm) |
| Height | 38″ (96 cm) | 38″ (96 cm) | 40” (102 cm) |
| Weight (crated) | 500 lbs. (226.8 kg) | 550 lbs. (249.5 kg) | 600 lbs. (272.2 kg) |
| Lance | Insulated Trigger Type – 30″ |
||
| Nozzle Pattern | 0° and 15° |
||
| Hose | 50 ft. x 3/8 in. (high pressure neoprene cover – wire braid) |
||
| Wheels | 4 – 10″ Pneumatic Rubber Tires |
||
| Injector (for liquid chemical) | Standard | ||
| Gauge (glycerin filled) | Standard | ||
| Unloader | Standard | ||
| Water Supply | Connects Directly to City Water System 15 P.S.I. to 100 P.S.I. |
||
| Heating Coil | 200 ft. -3/4 in. Heavy Steel Tubing (insulated for extremely fast heating and high efficiency) |
||
| Fuel Tank (capacity) | 12.5 Gallons |
||
| Oil Burner | Automatic Gun-Type Burner for Fuel Oils No. 1 or No. 2 fuel |
||
| Thermostat | Adjustable Temperature Up to 200°F |
||
Cold High Pressure Washers
- 1000 P.S.I. – 3 G.P.M. on 120 volt because of direct drive and 1725 RPM pump system.
- CDD 1003 Available with stainless steel base.
| Hot Models | CDD1003 | CDD1204 | CDD1504 | CDD2004 | CDD2004gas | CW2004 |
| Pressure (maximum) | 1000 P.S.I. (70 kg/cm2) |
1200 P.S.I. (84 kg/cm2) |
1500 P.S.I. (105 kg/cm2) |
2000 P.S.I. (140 kg/cm2) |
2000 P.S.I. (140 kg/cm2) |
2000 P.S.I. (140 kg/cm2) |
| Volume | 3 GPM (11.8 1/min) |
4 GPM (15.2 1/min) |
4 GPM (15.2 1/min) |
4 GPM (15.2 1/min) |
4 GPM (15.2 1/min) |
4 GPM (15.2 1/min) |
| Pump | Cold Direct Drive |
Cold Belt Drive | ||||
| Motor | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | Gas Engine | 5 H.P. |
| AMPS | 21.3 | 13.6 | 26 | 26 | – | 26 |
| Drive (single phase standard) | 110 V. | 220 V. | 220 V. | 220 V. | Gas Engine | 240 V. |
| Length | 27″ (69 cm) | 27″ (69 cm) | 27″ (69 cm) | 27″ (69 cm) | 32” (81 cm) |
30” (76 cm) |
| Width | 20″ (51 cm) | 20″ (51 cm) | 20″ (51 cm) | 20″ (51 cm) | 24″ (61 cm) | 22″ (56 cm) |
| Height | 18″ (46 cm) | 18″ (46 cm) | 18″ (46 cm) | 18″ (46 cm) | 26” (66 cm) |
– |
| Weight (crated) | 120 lbs. (54.4 kg) |
140 lbs. (63.5 kg) |
180 lbs. (81.6 kg) |
180 lbs. (81.6 kg) |
185 lbs. (83.9 kg) |
300 lbs. (135 kg) |
| Lance | 18″ Trigger Type |
30″
Trigger Type |
||||
| Nozzle Pattern | 0° and 15° |
|||||
| Hose | 50 ft. x 3/8 in. (high pressure neoprene cover – wire braid) |
|||||
| Wheels | 2 – 10″ Pneumatic Rubber Tires |
|||||
| Injector (for liquld chemical) | Standard | |||||
| Gauge (glycerin filled) | Standard | |||||
| Unloader | Standard | |||||
| Water Supply | Connects Directly to City Water System 15 P.S.I. to 100 P.S.I. |
|||||
MWG-2000 The “Go Anywhere” – “Clean Anything” Washer
Use anywhere a Mobile unit is desired: Siebring, Model MWG Hot High-Pressure Washers make ideal rental units. All MWG Models are completely portable offering the same excellent cleaning and sanitizing capabilities as stationary cleaning equipment.
A downstream injector (optional), allows either soap or acid to be applied. The completely self-contained MWG Washer can be used in the back of a pickup truck of on a trailer.
Other Models Available
- Engine – 10 HP (Electric start optional)
- Water Pump – Triplex
- Hose – High-pressure neoprene cover – wire braid – 3/8″ x 50 ft.
- Lance – 3 ft. long with insulated handle
- Heating Coil – 200 ft. 3/4″ heavy steel pipe, triple coiled from top to bottom. Insulated for extremely fast heating and high efficiency.
- Weight – 800 lbs. (362.9 kg). Add 150 lbs. (68 kg.) when exporting.
- FUEL TANK – 40 gallons ( 151.5 liters)
Accessories and Options
- 50 Cycle motor available
- Down stream acid injector (high pressure side of pump)
- 50′ hose – wire braid
- Custom – made units (larger sizes)
- Water filters and replacement cartridges
- Private trade labels and colors
- Pipeline shut-off valves
- Automatic (on-off)
- Detergents
- Quick couplers
Hose Reel
Neatly stores washer hose when not in use. Reduces hose damage. Lets operator start quicker. Available for all washer models Electric reels also available.
