ClassicTM Fans
9″ to 24″ Recirculation & Exhaust fans
Classic fans
How do you increase production? By adding airflow to your facility. Aerotech high volume recirculation fans maintain steady airflow in your building which provides fresh air, reduces condensation and equalizes temperatures.
| 0.0″ SP | |||||||
|---|---|---|---|---|---|---|---|
| Catalog No. |
Prop. Dia. |
Drive Type |
Motor HP |
Prop RPM |
Max. BHP |
CFM | CFM Watt |
| AT10AP, SP AT15AP |
9″ 14″ |
Direct Direct |
1/6 1/8 |
3,150 1,660 |
0.16 0.11 |
1,090 1,660 |
5.1 10.9 |
| AT14F, G AT16F, G |
14″ 16″ |
Direct Direct |
1/8 1/4 |
1,660 1,650 |
0.12 0.22 |
1,880 2,940 |
15.9 16.7 |
| AT18F, G AT24F, G |
18″ 24″ |
Direct Direct |
1/3 1/3 |
1,660 1,060 |
0.38 0.39 |
4,270 6,050 |
11.4 16.4 |
Notes:
1) Performance shown is for installation type A: Free inlet, Free outlet.
2) Speed (RPM) shown is nominal. Performance is based on actual test speed.
3) CFM/Watt values shown are based on actual Watt input measurements with single-phase motors.
4) Fan airflow performance with fan hood, guard and shutter is 10-15% less than fan with discharge cone, guard and shutter.
PRODUCT INFORMATION

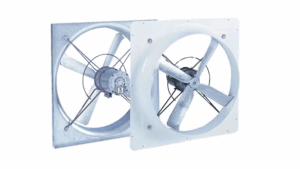

Panel Fans
- Fiberglass panel fan, stainless steel hardware ideal for harsh environments.
- Galvanized panel fan with variable speed motor, zinc plated hardware provides economical ventilation in non-corrosive environments.
- High CFM/Watt efficiency means lower electricity costs.
- Propellers are cast-aluminum and individually balanced for smooth, efficient air flow.
- Recirculation guard kits mount easily on both sides of the fan.
Pipe Fans
- High efficiency variable speed motor reduces operating costs.
- White PVC air pipe for harsh or corrosive environments.
- Easy installation for variety of applications.
- 15″ fan has two aluminum hanging clips bolted to top of housing.
- Cast-aluminum propeller is individually balanced for smooth operation.
- Stainless steel hardware ensures maximum corrosion protection.
- Inlet and outlet guards for safety.
Exhaust fans
Aerotech’s exhaust fans improve circulation. The ClassicTM panel fans can be installed in wall housings and customized with a discharge cone or fan hood to remove hot air from your building. The FPT is also an option for exhausting from the pit.
Install a discharge cone and boost airflow 10-17% with no additional electricity costs. Aerotech cones and hoods include snap-out safety guards for easy installation and maintenance. The construction of the accessories gives outstanding durability and reliability.
| 0.0″ SP | 0.05″ SP | 0.10″ SP | 0.15″ SP | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Catalog No. |
Prop. Dia. |
Drive Type |
Motor HP |
Prop RPM |
Max. BHP |
CFM | CFM Watt | CFM | CFM Watt | CFM | CFM Watt | CFM | CFM Watt |
| AT14F, G AT16F, G |
14″ 16″ |
Direct Direct |
1/8 1/4 |
1,660 1,650 |
0.14 0.24 |
2,140 3,440 |
14.7 13.6 |
2,010 3,150 |
13.1 12.2 |
1,890 2,940 |
11.9 11.0 |
1,690 2,690 |
10.1 10.1 |
| AT18F, G AT24F, G |
18″ 24″ |
Direct Direct |
1/3 1/3 |
1,660 1,060 |
0.43 0.39 |
4,550 6,510 |
10.9 15.8 |
4,380 6,140 |
10.1 14.4 |
4,230 5,700 |
9.7 12.9 |
4,070 5,290 |
8.9 11.9 |
| Catalog No. |
0.02″ SP | 0.05″ SP | ||
|---|---|---|---|---|
| RPM | CFM | RPM | CFM | |
| AT10AP, SP AT15AP AT14F, G AT16F, G AT18F, G AT24F, G |
700 550 550 500 500 500 |
125 160 140 340 530 870 |
700 600 600 600 600 600 |
50 100 85 260 430 870 |
Notes:
1) Performance shown is for installation type A: Free inlet, Free outlet.
2) Speed (RPM) shown is nominal. Performance is based on actual test speed.
3) CFM/Watt values shown are based on actual Watt input measurements with single-phase motors.
4) Fan airflow performance with fan hood, guard and shutter is 10-15% less than fan with discharge cone, guard and shutter.
