ANDERSON INJECTORS
FULLY ASSEMBLED RATIO:FEEDER® SYSTEMS
The most versatile chemical injectors you can buy are now available fully assembled. Configure to feed fertilizer, acid and/or other chemicals. Compact loop configuration saves floor space and makes installation simple. Just connect the inlet, outlet, drain and plug it in.
Shipped fully assembled and wired. Simply install water inlet and outlet, plug in power cord, and insert suction valves into chemical tanks.
Features:
- Volume Proportioning
- No Sliding Seals
- Positive Displacement Pumps
- Individually Adjustable Feed Rates
- Feed Multiple Solutions Separately
- No Strainer Required
- Long Life Systems
Specifications:
- 2″ System fully assembled and wired
- 2 – 160 GPM Flow Rate
- 30 – 125 PSI Operating Pressure
- 1:200 – 1:2000 Injection Rate

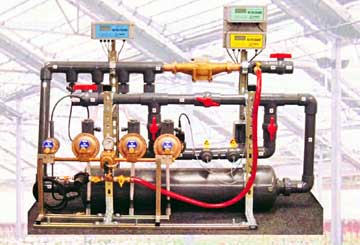

The Anderson fully assembled Ratio:Feeder® injector base system contains the following items: J-Plus controller, 2″ water meter, pumper manifold, 2 fertilizer pumpers, blend tank, and plumbing package w/frame. System pricing with optional components are listed below. Please contact your local Anderson distributor for help configuring your system to meet your company’s injector needs.
| Part # | Description | Quantity | Price |
|---|---|---|---|
| BASE SYSTEM | 1160 GPM SYSTEM WITH NUTRIENT INJECTION | 1 | $6,750.00 |
| 2592 | AIR KIT (ELIMINATES DISCHARGE WATER) | 1 | $210.00 |
| E-1S | EC MONITOR W/ PROBES | 1 | $780.00 |
| P-1S | pH MONITOR W/ CONVERTOR & PROBE | 1 | $1,014.00 |
| A3-VCP | ACID INJECTOR | 1 | $740.00 |
| P1-HCP | SANITIZER INJECTOR | 1 | $672.00 |
| H4-HD | NUTRIENT INJECTOR | 1 | $727.00 |
| DELUXE SYSTEM | 160 GPM SYSTEM WITH NUTRIENT. ACID. & SANITIZER INJ. AND EC/pH MONITORS | 1 | $10,500.00 |
