Euroemme Munters Fans:
Air Recirculator EDS24

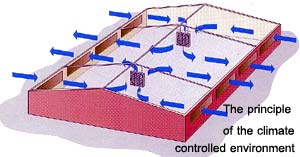

Normally
sold with front and back screen but
not louvers. Air recirculator fans used in many industries.
EDS24 Euroemme Munters Fan is the ideal air recirculation fan whenever high air movement capacity- is required. The unique propeller design is self-cleaning and allows the highest efficiency to be reached.
ED 24 is characterized by direct drive motor that provides a high and steady airflow, while
making maintenance easier.
The square fan housing and air conveyor (venturi) of Euroemme Munters fans are made of a strong galvanized sheet-steel. The 6-blade propeller is statically and dynamic balanced for low noise and low vibration. The propeller is available in stainless steel, galvanized steel and pre-coated and galvanized steel.
EM 30-36 and ED 24 are among the most well-known exhaust box fans designed and produced by Euroemme/Munters, able to combine high airflow capacity with reliability in any livestock farming
(broiler, layer, swine, dairy) and greenhouse application.
The patented centrifugal system provides an energy efficient solution and powerful springs keep shutters tightly closed when
the fan is not turned on, avoiding air leakage and blocking light. As market leader in ventilation solutions for more than 60 years,
Munters guarantees quality and is ISO 9001 certified.
To improve aerodynamic efficiency the fan has been developed in Munters Euroemme’s R&D lab. The test chamber has been built according to ANSI / AMCA 210-85 Figure 15 specifications. Construction details and air tightness have been verified by personnel of the BESS Lab at the Agricultural Engineering
Department, University of Illinois USA.
Euroemme Munters Fans Propeller
Propeller is directly coupled with motor in order to reduce the number of rotating parts.
Equipment
- Fan housing and venturi made of strong galvanized sheet-steel.
- Each motor is individually tested for 100″/o quality
control. - Propeller is statically and dynamically balanced.
- Special threaded bushes on fan’s side panels permit the
fan to be easily hung. - Every fan is individually checked for quality.
EDS24-X-X-X e.g., EDS24-b-2-wm
- b : Code for electric motor according
to above table. - 2 : Code for the type of propeller blades.
- Galvanized propeller blades.
- Precoated propeller blades.
- Stainless steel propeller blades.
- wm : Options codes
- wm: Fan delivered with pyramidal
shape mesh for CE protection on shutter side. - nm: Fan delivered without pyramidal
shape mesh for CE protection on shutter side (standard)
- wm: Fan delivered with pyramidal
Euroemme Munters Fans
Motor Specifications
| EDS 24 Code |
Nominal power | Type phases |
Speed | Frequency [hz] |
Voltage [V] |
Current [A] |
rpm | |
| [w] | [hp] | |||||||
| a | 370 | 0.5 | 3 | multi* | 50 | 230 / 400 | 2.5 / 1.5 | 900 |
| b | 370 | 0.5 | 3 | multi* | 60 | 230 / 400 | 2.5 / 1.5 | 1,100 |
| c | 370 | 0.5 | 1 | multi* | 50 | 220 | 3.8 | 900 |
| d | 370 | 0.5 | 1 | multi* | 50 | 240 | 3.7 | 900 |
| e | 370 | 0.5 | 1 | multi* | 60 | 220 | 4.5 | 1,100 |
| * Multi speed motors must be regulated with auto-transformer which is not supplied. |
||||||||
Euroemme Munters Fans
Technical Specifications
| 05 hp | ||
| Weight of fully equipped fan1 | [kg] | 34 |
| Nominal propeller speed | [rmp] | 900 / 1,100 |
| Airflow at 0 Pa1 | [m3/h] [cfm] | 10,600 [6,240] |
| Specific performance at 0 Pa1 | [m3/wh] [cfm/w] | 12.5 [7.3] |
| Propeller diameter | [mm] [inch] | 600 [24] |
| Number of blades | 6 | |
| IEC protective class of electric motor | IP55 | |
| Electric motor winding insulation grade | B | |
| 1 All values refer to 3 phases 50 Hz motor. N.B Airflow data are measured at standard condition (20 °C, 1013 hPa). |
||
EDS 24 is developed and produced by Munters euroemme S.p.A., Italy.
We also have ED24 Exhaust Fan.
