ACME SLANT WALL HOUSING
ACME FAN WS MODEL
The 6 blade Acme Slant Wall Housing Model DC fan has delivered time-tested performance and reliability for many decades. Available in powder coated steel or aluminum options.
Acme Fan Model DCA
- Constructed of heavy gauge galvanized steel or aluminum.
- For Model DC, DCA, FQ and FN Fans.
- Energy Savings – with inside shutter saves up to 3750 BTU/HR heat loss per fan.
- High Flow Capacity – shutter directs air to fan. Select fan at .05″ sp. instead of .10″.
- Weather Protected – slant arrangement protects motor and drives from elements.
- Outside Mounting – keeps equipment from blocking aisles.
- Assembled to fan for quick, easy field installation.
- Includes 1″ x ½” guard on outlet side.
- Acme Shutter and inlet guard held in place with quick release clips.
- Wiring knockout included to allow all wiring connections for motor to be made inside the building. For fan application, see pages 4 and 5 for Windmaster Acme Fan
Acme Slant Wall Housing Model DCWS
- Acme Six-bladed propeller utilizing a cambered – twist blade designed with a unique dihedral tip for higher air flow
capacities at less horsepower. - Non-overloading design maintains horsepower within catalog range of static pressure, resulting in lower motor load and
reduced operating costs. - Streamlined orifice insures higher air flow capacity.
- Mounted in slant housing.
- Acme Fan is rust protected with Acme’s powder coat system.
- The fan housing is galvanized.
- Available with automatic belt tightener.
ACME SLANT WALL HOUSING
- Acme Fan Constructed of heavy gauge galvanized steel.
- For Acme Fan Model DC and DCA.
- Provides convenient means to install fan and shutter.
- Outside Mounting – keeps equipment from blocking aisles.
- Mounting Flanges for attaching to wall and to attach shutter.
- Assembled to fan for quick, easy field installation

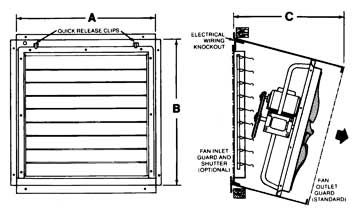

| FAN SIZE | WALL HOUSING | AUTOMATIC ALUMINUM SHUTTER | INLET GUARD | INSIDE FRAMED OPENING DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | WT. | MODEL | WT. | MODEL | WT. | A | B | C | |
| 12” 16” 18” 24” 30” 36” 42” 48” 54” |
WS12FQ WS16FQ WS18FN WS24DC WS30DC WS36DC WS42DC WS48DC WS54DC |
20 23 28 35 42 46 53 78 106 |
WAA1515 WAA2020 WAA2222 WAA2727 WAA3333 WAA3939 WAA4545 WAA5454 WAA6060 |
4 8 8 9 13 17 25 35 40 |
GS12 GS16 GS18 GS24 GS30 GS36 GS42 GS48 GS54 |
4 4 5 5 7 10 12 15 18 |
16 3/4” 21 3/4” 23 3/4” 28 3/4” 34 3/4” 40 3/4” 46 3/4” 54 3/4” 60 3/4” |
18” 23 1/4” 25 1/4” 30 3/4” 36 1/2” 42 3/4” 49” 57 1/4” 63 1/2” |
24” 27” 24” 31 7/8” 34 1/4” 34 1/8” 36 3/4” 40 7/8” 39 1/2” |
MODEL WB SQUARE WALL HOUSING
- Constructed of heavy gauge galvanized steel.
- For Acme Fan Model DC and DCA.
- Provides convenient means to install fan and shutter.
- Outside Mounting – keeps equipment from blocking aisles.
- Mounting Flanges for attaching to wall and to attach shutter.
- Assembled to fan for quick, easy field installation.
| FAN SIZE | WALL HOUSING | AUTOMATIC ALUMINUM SHUTTER | INLET GUARD | INSIDE FRAMED OPENING DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | WT. | MODEL | WT. | MODEL | WT. | A | B | C | |
| 24” 30” 36” 42” 48” 54″ |
WB24DC WB30DC WB36DC WB42DC WB48DC WB54DC |
30 36 38 40 70 96 |
WAA2727 WAA3333 WAA3939 WAA4545 WAA5454 WAA6060 |
9 13 17 25 35 40 |
GD24 GD30 GD36 GD42 GD48 GD54 |
5 7 10 12 15 1 |
283/4” 343/4” 403/4” 463/4” 543/4” 603/4” |
283/4” 343/4” 403/4” 463/4” 543/4” 603/4” |
24” 24” 24” 24” 25” 29” |
CAUTION! Guards must be installed when fan is within reach of personnel or within seven (7) feet of working level or when deemed advisable for safety for the Acme Slant Wall Housing.
All Guards: for wall housings have 1” x ” welding galvanized wire in aluminum frame for inlet side of wall housing. Outlet guards are included on Acme Slant Wall housing as standard equipment. Inlet guards are mounted with quick release clips.
