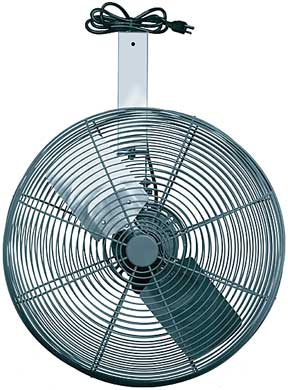

HAF (Horizontal Air Flow)
VALU-MASTER Fan
Acme’s precise engineering has matched the proper propeller with a continuous duty motor to form a high air flow and low energy consumption HAF (horizontal air flow) fan. This ACME HAF fan offers the user maintenance-free, long-lasting equipment suited for use in horticulture environments. ACME HAF fan is commonly used for greenhouse, warehouse and industrial air circulation. Outstanding CFM’s for watt of electricity and exceptional air flow. Outstanding guard without reducing air flow.
HAF Fan Propeller
Aluminum blades held securely in place by a steel spider and hub provide quiet operation. Designed to give the best performance and efficiency as well as quiet operation.
HAF Fan Moisture Resistant Motor
From 1/15 HP PSC to 1/2 HP 3 phase, ACME has the right motor for the fan size. All have thermal overload protection and ball bearings. Selected motors can be used with variable speed control for more precise air movement.
HAF Fan PVC Coated Guards
Two piece wire easy-access guard has a white PVC coating to resist corrosion.
HAF Fan Easy Installation

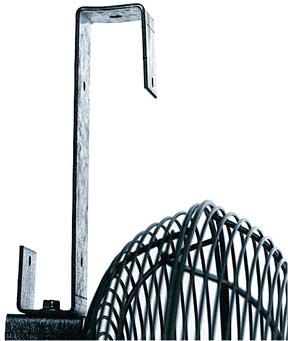

Two piece standard rotational bracket provides a locking tilt adjustment for proper angle of air flow. “S” bracket provides two different dimensional mountings. Optional brackets are available for alternate mounting styles.
HAF Fan Factory Wiring
All single phase motors come factory wired using either a 6 foot 115 volt or 8 foot 230 volt cord with molded plug.
| FAN SIZE | MODEL | RPM | MOTOR HP | VOLTAGE | HZ | WATTS* | AIR FLOW | CFM/WATT |
|---|---|---|---|---|---|---|---|---|
| 12″ | HAF12A4 | 1566 | 1/15 | 115/1 | 60 | 124.5 | 1,145 | 9.2 |
| 20” | HAF20A4 | 1626 | 1/15 | 115/1 | 60 | 105.0 | 3,005 | 28.6 |
| 20” | HAF20F4 | 1686 | 1/3 | 115/230/1 | 60 | 402.5 | 5,105 | 12.7 |
| 36″ | HAF36G8 | 808 | 1/2 | 115/230/1 | 60 | 680.0 | 11,280 | 18.1 |
| 36″ | HAF36G8 | 808 | 1/2 | **200/230/460/3 | 60 | 680.0 | 12,280 | 18.1 |
* Watt reading is corrected to standard air density.
Available with variable speed controller.
**200/230/3 dual voltage or 460/3 single voltage
Speed (RPM) shown is nominal.
Performance is based on actual speed of test.
Performance ratings include the effect of guards.
LIMITED WARRANTY:
Acme extends this limited warranty to the original purchaser and warrants that products described herein shall be free from original defects in workmanship and materials for two years from date of shipment.
Exception applied for Acme’s exclusive duplex split pillow block bearings and shaft five years from date of shipment, belts one year from date of shipment, polyethylene tubing 90 days from date of shipment, and DDP fan lifetime warranty on its stainless steel propeller, cone, and housing), provided same have been properly handled, stored, installed, serviced, maintained and operated.
Refer to Form MS149 for complete limited warranty terms and conditions. This form is available to anyone at AcmeFanGroup.com. The Company’s warranty is in lieu of all other warranties, express or implied, arising by law or otherwise, including without limitation the implied warranties of merchantability and fitness for a particular purpose, which are hereby
expressly disclaimed claimed and waived.
Acme products are designed and manufactured to provide reliable performance but they are not guaranteed to be 100% free of defects. Even reliable products will experience occasional failures and this possibility should be recognized by the Purchaser and End User.
If these products are used in a life support ventilation system where failure could result in loss or injury, the Purchaser and End User should provide adequate back-up ventilation, supplementary natural ventilation or failure alarm system, or acknowledge willingness to accept the risk of such loss or injury.
