Great artists know how to work with light. Great architects and designers look for the best materials to bring the light into each space to create the right atmosphere. US Global Resources offers a range of flexible multiwall polycarbonate thermoplastic sheets that are ideal for roofing, glazing, skylights, signage and interior design projects.

They maximize the available light and provide insulation and UV-protection, as well as adding texture and color to your project.
Our Polygal Multiwall sheets are constructed from multiple layers of polycarbonate for maximum strength, with an internal cellular structure that makes them light and flexible.

Multiwall Polycarbonate Applications:

Agricultural Application.
AGRICULTURE
Architecture Application
ARCHITECTURE
SWIMMING POOL
SWIMMING POOL

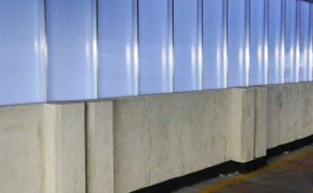

CAR PARKING
CAR PARKING
Stadium Application
STADIUM
PERGULA/VERANDA/PATIO
PERGULA/VERANDA/PATIO

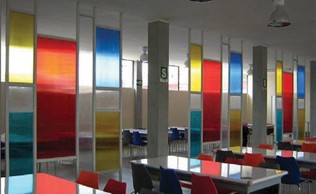

PARTITION WALL.
PARTITION WALL
Interior Design Application
INTERIOR DESIGN
Canopy Application
CANOPY

Multiwall Polycarbonate Features and Benefits:

  • Excellent insulation
  • Controlled daylight transmission
  • Virtually unbreakable
  • Flexible and easy to install
  • Flame retardant
  • Lightweight
  • UV-blocking
  • Environmentally friendly

2W Section = Double Wall Multiwall Polycarbonate

Double and triple layered MultiWall sheets are manufactured in various colors and degrees of transparency. These multiwall polycarbonate sheets are designed for use in most conventional roofing and glazing applications

Production
Thickness Rib distance
(mm)		 Weight
(g/m2)		 Sizes available
(mm)		 Color Light Transmission
(%)
4 mm 6 800 2100 x 6000 clear 83 3.9
6 mm 6 1300 2100 x 6000 clear 82 3.6
8 mm 10 1500 2100 x 6000 clear 81 3.4
10 mm 10 1700 2100 x 6000 clear 77 3.2
Tolerance:

  • Thickness ± 1 mm
  • Weight ± 5%
  • Width + 5 + 9 mm
  • Length – 0 + 20 mm up to 6000 mm
    – 0 + 30 mm above 6001 mm
  • Other colors – (e.g. bronze, opal ,….) available upon request

3W Section = Triple Wall Multiwall Polycarbonate

Production
Thickness Rib distance
(mm)		 Weight
(g/m2)		 Sizes available
(mm)		 Color Light Transmission
(%)
10 mm 20 2000 2100 x 7000 clear 76 3.0
16 mm 20 2700 980 x 7000
1050 x 7000*
1200 x 7000
2100 x 7000		 clear 82 2.3
Tolerance:

  • Thickness ± 1 mm
  • Weight ± 5%
  • Width 2100 + 5 + 9 mm
    1200 – 1050 – 980 : ± 2 mm
  • Length – 0 + 20 mm up to 6000 mm
    – 0 + 30 mm above 6001 mm
  • Other colours – (e.g. bronze, opal ,….) available upon request
  • * available in open side edges

4RW Section = Four Reinforced Multiwall Polycarbonate

Production
Thickness Rib distance
(mm)		 Weight
(g/m2)		 Sizes available
(mm)		 Color Light Transmission
(%)
10 mm 16 1800
2000		 1200 x 7000 clear 70 2.45
16 mm 16 2800 980 x 7000
1200 x 7000		 clear 67 2.1
Tolerance:

  • Thickness ± 1 mm
  • Weight ± 5%
  • Width ± 2 mm
  • Length – 0 + 20 mm up to 6000 mm
    – 0 + 30 mm above 6001 mm
  • Other colors – (e.g. bronze, opal ,….) available upon request

Polycabonate
USGR Polymatte for Commercial Greenhouses

CONNECTION PROFILES AND ACCESSORIES

Our interconnecting polycarbonate or aluminum profiles connect multiple multiwall polycarbonate sheets to cover large areas. They do not add weight and lie flush with the sheets.

The connectors are UV-resistant and provide excellent sealing for roofs and inclined walls, because they do not obstruct light at connection points. These profiles are available in unlimited lengths, are easy to handle and install, and suit most roofing, curtain wall and cladding applications.

ECP connection system
The easy clip profile system is for polycarbonate profiles designed to connect multiwall polycarbonate sheets with thicknesses between 6mm to 10mm (0.236” to 0.394”). Profiles can easily be connected together to form reliable joints. Manufactured in standard colors, in lengths of 6m or 12m (19.7’ or 39.4’).

Combined connection System
This system consists of an aluminum base and polycarbonate cap profiles. Designed to connect multiwall polycarbonate sheets with a thicknesses between 6mm to 18mm (0.236” to 0.709”), it provides a rigid connection. Manufactured in standard colors, and lengths up to 6M (19.7’).

GCP System
The gasket clip profile system for polycarbonate profiles with integrated coextruded gaskets, designed to connect multiwall polycarbonate sheets with thicknesses between 6mm to 10mm (0.236” to 0.394”). It provides a well sealed connection, manufactures in standard colors and lengths of 6m as 12m (19.7’ and 39.4’).

MGL System
The mega lock profile glazing system designed to connect multiwall polycarbonate sheets with thicknesses between 6mm to 16mm (0.236” to 0.625”). It provides a rigid and sealed connection in lengths up to 6m (19.7’).
