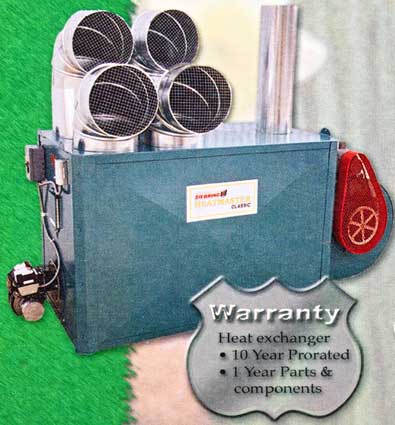

Oil Heaters Heatmaster Classic

“Livingroom” comfort anywhere! This fully automatic furnace is sized right to meet your needs for efficient dependable general purpose heating. It gives you many construction and quality features including : Electric welded steel construction throughout for years of trouble-free service, a double welded fire box, 12″ adjustable elbows to connect to standard ductwork, and vents which can be custom built to your specifications.

Includes

• Single stage oil pump (1Q’ lift)
• 55° thermostat
• 12″ heat distribution elbows
• Shielded cad cell flame sensor
• Summer fan switch
• Flame retention burner
• Barometric damper
• Breaker disconnect box
• Fully guarded blower assembly
• Energy efficient fan motor

Features:

• All controls are wired for installation
• Electric welded steel construction
• Double welded fire box
• Adjustable air shutter on burner for better efficiency
• Designed to work with a horizontal air flow pattern in large buildings
• High fuel efficiency
• Home quiet blower

Options :

• Low temperature thermostat ( 30^o)
• 2 – stage fuel pump ( 21 ft. lift )
• Magnum blower

The USGR Siebring Heatmaster Oil Heaters are also available in gas models.

---

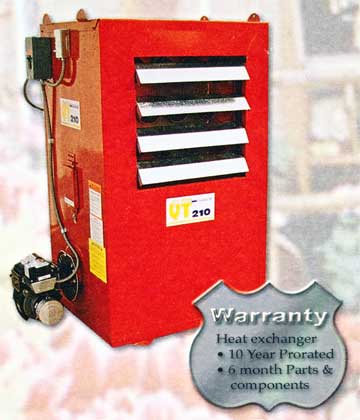

Quantum Oil Heaters

Includes:

• Single stage oil pump (10′ lift)
• 55° thermostat
• Cad cell flame sensor
• Fan and limit control switch
• Breaker disconnect box
• Adjustable outlet louvers
• Finger protective fan guard
• Hanger adaptable hooks on case
• 1/3 H.P. capacitor start fan motor
• 24″ 4-blade “Quite Quiet” fan

Features:

• All controls are wired for installation
• Lightweight design offers versatile mounting options (ceiling or floor)
• Designed to work with a horizontal air flow pattern in large buildings
• High fuel efficiency

The USGR Siebring Quantum Oil Heaters are also available in gas models.



---

Royal Oil Heaters

Includes:

• Single stage oil pump (10′ lift)
• 55′ thermostat
• Cad cell flame sensor
• Summer fan switch
• Barometric damper
• Breaker disconnect box
• Fully guarded blower assembly
• Energy efficient fan motor

Features:

• Al! controls are wired for installation
• Stainless steel baffling
• Adjustable air shutter on burner for better efficiency
• Designed to work with a horizontal air flow pattern in large buildings
• High fuel efficiency
• Home quiet blower

Options:

• Low temperature thermostat (30°)
• 2-stage fuel pump (21′ lift)
• Magnum blower

The USGR Siebring Royal Oil Heaters are also available in gas models.

MODEL	BTU	GALLONS PER HOUR	OVERALL WIDTH	OVERALL LENGTH	OVERALL HEIGHT	VENT PIPE	SHIPPING WEIGHT	MOTOR	BLOWER
RO240	240,000	1.65	42″	48″	51″	8″	740 lbs	3/4 HP	2800CFM
RO320	320,000	2.25	38″	57″	51″	8″	860 lbs	1 HP	3600CFM



---

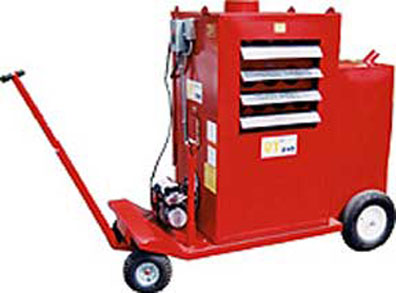

Pull ‘N Heat Portable Oil Heaters

The USGR Siebring Pull ‘N Heat Oil Heaters offer clean, efficient heat for temporary use situations. Using #2 heating oil or farm diesel fuel the USGR Siebring Pull ‘N Heat Oil Heaters can provide up to 24 hours of portable warmth for plants, people, or animals.

Includes:

• Fuel tank for up to 24 hours of heating
• Alumina-Silica Refractor
• Cad cell flame sensor on burner
• Large 16″no-flat tires
• Front no-flat tires for easy maneuvering
• 120 volt for easy generator application

Features:

• Narrow design fits through 30″ door
• On board thermostat for easy temperature control
• Chimney vent for use in situations where more than 8 hours of use is required

Applications:

• Power outage emergencies
• Early spring retail greenhouses
• Christmas tree shelters
• Construction sites
• Rental businesses
